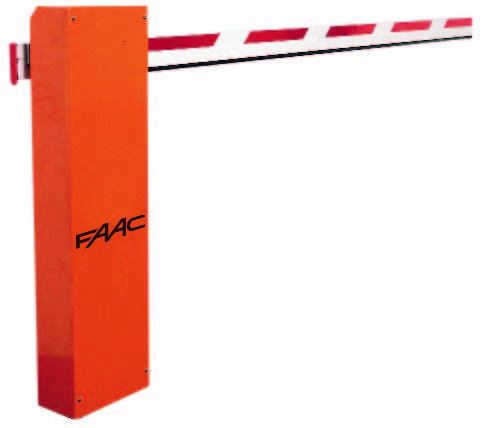

FAAC- 615 STD Boom Barrier

Download Get A Quote

Model: 615 STD Boom Barrier
Brand: FAAC
SPECIFICATIONS:
Automatic Barrier For Beams Up To 5m • 40% Use Frequency (Rapid Version)/50% (Standard Version) • Opening/closing Time 3 S. (Rapid
Version)/6 S. (Standard Version) • Activation System Comprising Hydraulic Pump Unit, Double-acting Piston, Equaliser And Transmission
Shaft • Balancing By Extended Spring • Internal Stops Adjustable For Open Or Closed Beam Positions • Load Bearing Housing In Steel Protected By Cataphoresis Treatment And Polyester Powder Paint RAL 2004 • Release Device Accessible From The Outside By Triangular Key • Hydraulic Pump Unit With Hydraulic Locking In Open And Closed Position • Electric Motor Power Supply 230 Vac (+6% -10%) - 50(60) Hz • Electric Motor Power 220 W • Thermal Protection At 120°C Built Into Motor Winding • Operating Ambient Temperature: -20°C ÷ +55°C
• Single-phase Motor With Two Rotation Directions • Hydraulic Gerotor Pump (very Low-noise) • Pump Flow-rate 3,0 L/m (Rapid Version)/1,5
L/m (Standard Version) • Torque From 0 To 300 Nm (Rapid Version)/from 0 To 400 Nm (Standard Version) • Die-cast Distribution Flange
• Separate Adjustment Of Opening And Closing Power By By-pass Valve • Tank In Anodised Aluminium • Mineral Hydraulic Oil With Additives
• Designed To Accommodate Standard Rectangular Beams, Standard Beams With Skirt (4 M), Standard Articulated Beams.

*Donwload Product Brochure From Above Download Option*

Product Quantity: 1

Category Name: Entrance Automation System
