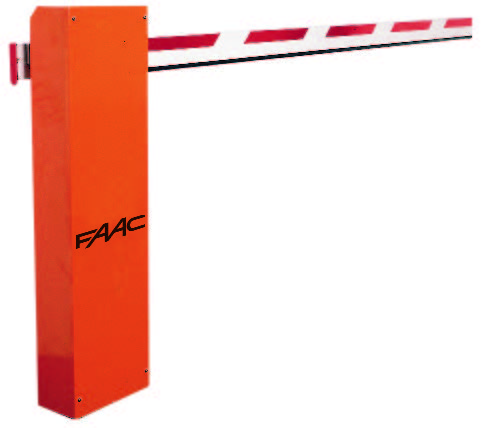

FAAC- 620 STANDARD Boom Barrier

Download Get A Quote

Model: 620 STANDARD Boom Barrier
Brand: FAAC

SPECIFICATIONS
Automatic Barrier For Beams Up To 5 M • Use Frequency 70% • Opening/closing Time 3.5s (3 M) 4.5s (5m) • Actuating System Consisting
Of Hydraulic Pump Unit, Plunger Pistons, Equaliser And Transmission Shaft • Balancing By Compression Spring • Internal Stops Adjustable
For Open Or Closed Beam Positions • Load Bearing Housing In Steel Protected By Cataphoresis Treatment And Polyester Powder Paint RAL
2004 • Overall Dimensions 200x380x1080 Mm (LxWxH) • Protection Class IP 44 • Release Device Accessible From The Outside By Triangular Or Customised Key (optional) • Hydraulic Pump Unit With Hydraulic Locking On Opening And Closing • Electric Motor Power Supply 230 Vac (+6% -10%) - 50(60) Hz • Electric Motor Power 220 W • Thermal Protection At 120°C Built Into Motor Winding • Operating Ambient Temperature -20°C ÷ +55°C • Single-phase Motor With Two Rotation Directions (1.400 Rpm) • Hydraulic Gerotor Pump (max Low Noise) • Pump Flow Rate 0.75-1 L/m • Die-cast Distribution Flange • Separate Control Of Opening And Closing Force By By-pass Valves • Tank In Anodised Aluminium • Mineral Hydraulic Oil With Additives • Travel-limit Deceleration • Adjustable Deceleration Angle By Cams • Designed
To Accommodate Rectangular, Rectangular With Skirt, Articulated Rectangular, Round, Round Pivoting Beams • Built-in Electronic Control Board.

*Donwload Product Brochure From Above Download Option*

Product Quantity: 1

Category Name: Entrance Automation System
