Innovative, High-performance, Whole Home Audio Solution For Music Lovers Of All Levels
In The Early 1980s, Wharfedale Created The Blueprint For Modern ‘budget’ Hi-fi Speakers When It Made The First-ever DIAMOND. Through Successive Generations, The Wharfedale DIAMOND Has Remained The Most Famous Name In Budget Hi-fi Speakers Worldwide.

Offline Experience With Completely Personalized Product Assistance That Helps You Choose Smarter, Buy Better, And Save More With The Best Offline Deals.



"We Don’t Believe In Selling Products- We Believe In Guiding You To Make The Right Purchase. We Research, Compare, And Help You Find What Truly Fits Your Needs, Not What’s On The Shelf."

Authorised Retailer In Gujarat



The Launch Of A New DIAMOND Range Is Always A Major Hi-fi Event And This Campaign Will Introduce The Latest Generation Of DIAMOND Loudspeakers To The World. The Wharfedale DIAMOND Line Is “one Of The Most Successful Speaker Ranges Of All Time” (What Hi-Fi? 2015).

It’s Also One Of The Most Enduring – There Have Been Wharfedale DIAMOND Speakers On The Market For The Past 38 Years, Updated From One Generation To The Next. The All-new DIAMOND 12 Series Is The Best DIAMOND Range Yet, Developed In Collaboration With Karl-Heinz Fink – One Of The Most Successful Loudspeaker Designers On The Planet. Classic DIAMOND Price Points, Industrial Design That’s Cool And Contemporary Yet Still Distinctly Wharfedale, And Sound That Delivers A New ‘budget’ Benchmark Through Exceptional Acoustic Design And Engineering – The DIAMOND 12 Series Is One Of The Most Exciting Audio Product Launches Of 2020.

Klarity Affords Focus
New Klarity™ Cone Material, Formulate From A Blend Of Polypropylene And Mica Adds Stiffness To Reduce Flexing, Enabling A Lightweight Cone With High Rigidity, Low Colouration And Lightning-fast Response.

Low Colour & Expression
The Klarity™ Cone Is Fitted With A Low-damping Surround, Thereby Achieving Both Low Colouration And Expressive Dynamics. By Simulating Many Different Cone Shapes And Adding Ribs To Provide Further Stiffening, A Flat Response Curve Was Achieved Without Resorting To A High-damping Surround, Thereby Striking The Ideal Balance.

A Magnet Of Forces
A Precision-made Magnet System With An Aluminium Compensation Ring To Minimise The Effect Of Variations In Inductance As The Voice Coil Travels. This Contributes To An Absence Of Distortion And Intermodulation Generated By The ‘motor System’.

A Voice Coil Beyond This Class
The Voice Coil Is Wound On A High-power Epoxy/glass Fibre Bobbin – Highly Unusual In Speakers At This Price Level. This Has The Advantage Of Not Adding Eddy Currents And Delivering Greater Power Handling Than An Aluminium Bobbin, Whilst Also Being Much Stiffer Than The Kapton Type Associated With This Price-class.

Diamond Highs
The 25mm Dome Is Made From A Woven Polyester Film With A High-loss Coating To Deliver Open And Smoothly Extended High Frequencies. The Magnet System And The Front Plate Have Been Optimised For Wide Dispersion And Uncompressed Behaviour. The Front Plate Is Flat And Exposes The Dome As Much As Possible; Only A Very Short Duct On The Front Plate Balances The Acoustic Load And Improves The SPL (sound Pressure Level) Measurement.

A Crossover Of Style
The Crossover Network Uses An Acoustic LKR 24dB Topology. This Includes Air Core Inductors Of The Type More Commonly Found In High-end Speakers, Selected Because They Produce The Lowest Distortion Of All Inductor Types. As The Resistance Of The Coil Is Higher Than A Standard Laminated Steel Or Ferrite Core Inductor, The Magnetic Structure Of The Mid/bass Driver Has Been Modified To Compensate,
Resulting In Fast, Clean Bass With No Distortion From The Inductor.

Brace Oneself
Inside The Cabinet, Intelligent Spot Bracing Connects Opposite Walls With A Specific Form Of Wood Brace To Achieve Optimal Reduction Of Cabinet Resonance. These Braces Are Precisely Modelled By Computer Simulation To Improve Upon The Commonplace ‘figure Of Eight’ Brace, Which May Simply Transfer Resonance From One Wall To Another.

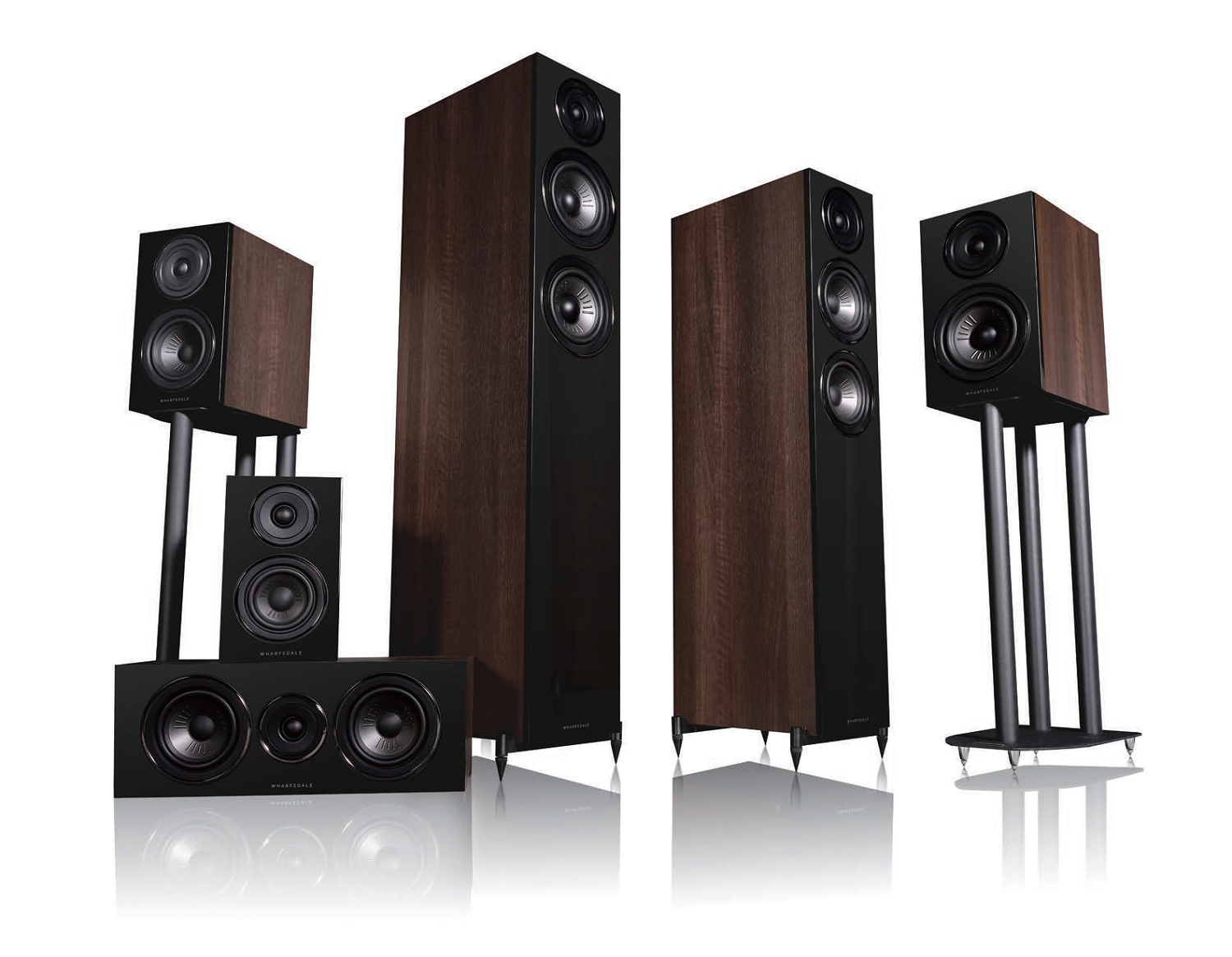

Package Of DIAMOND 12 Series
Model: Wharfedale UK Diamond 12.4
Description: Front 2.5-way Floor Standing TowersSpeaker (L + R)2.5 Way High Quality Audio Speaker, 6.5"(130mm) Advanced PP Cone Bass Driver,  Freq Resp: 40Hz ~ 20kHz, Sensitivity: 89dB, SPL:102dB, Crossover Frequency 2.1KHz, Nominal Impedance 8ohm, Minimum Impedance: 5ohm  Dim( H X W X D ) : (1100+50) X 200 X (350+28) Mm,Wt:22.4kg/pcs.

Model: Wharfedale UK Diamond 12.C
Description: Center Speaker 2 Way High Quality Audio Speaker,  5"(130mm) Advanced PP Cone Bass Driver,  Freq Resp: 90Hz ~ 20kHz, Sensitivity: 90dB, SPL: 96dB, Crossover Frequency 2.2 KHz, Nominal Impedance 8ohm, Minimum Impedance: 4ohm  Dim( H X W X D ) :  180 X 480 X (180+28) Mm, Wt:8.5 Kg/pc

Model: Wharfedale UK WWS-65
Description: SL+ SR Speaker  Two-Way In-wall Hifi Speaker (Durable And Discrete) 6.5" Polypropylene LF With Ultra-durable, High-excursion Rubber Surround, Adjustable 25mm Titanium Dome HF Driver With Highly Efficient Neodymium Motor ,borderless Magnetic Grille, Sensitivity (2.83V @ 1m) 87dB, Power (RMS / Peak) 30W / 80W, Peak SPL 97dB, Frequency Response: 65Hz - 20kHz, Hole Cutting Size 278mm X 191 Mm, Depth100mm. Outer Size 298 X 211mm)

Model: Wharfedale UK ML-100
Description: Atmos (Height)  dual-driver Speakers  2-Way Closed Encolsure High Quality Audio Speaker 1 X 4.5" Carbon Fiber Bass Driver, 3"  cone Treble Diver, Freq Resp: 86-18kHz, HF Driver Sensitivity:90dB ,SPL:108dB,
 Dim.-164 X 121x 331 Mm ,Wt:3.05 Kg.

Model: Wharfedale UK WH-DFS
Description: Surround Back Diffuse Bipolar Speakers Special Bipolar Profiled Baffle With Extruded Triangular Cross-section Wide Dispersion Real Sound Field Speakers Bass Driver 2 X 100mm, Tweeter Dome 25mm. Power Handling 15-200W. Impedance 6 Ohms., Sensitivity: 86dB, Frequency Response: 70Hz~24Khz, HF Limit: 44Khz, Crossover Frequency: 3.5Khz, System Frequency: 80Hz, Dim: 280x290x132mm

Model: wharfedale UK SW12
Description: Active Dynamic-Drive IB Subwoofer System 12-Inch Woofer, Built-In Power Amp, And Stylish Veneers, Frequency Response 35- 120Hz ±3dB, Amplifier Power Output 300W, Peak Power Output 450W, Line Input Sensitivity 200mv For Maximum Output,  Frequency Response:32 Hz – 150 Hz Max Power: 300 Watts, 16.3” H X 13.7” W X 15” D - 15.1 Kg."



Product Quantity: 1

Category Name: Home Theaters, Mini Theaters and Pure Cinema
