BYFORD AUDIO PA-500 STEREO POWER AMPLIFIER

Get A Quote

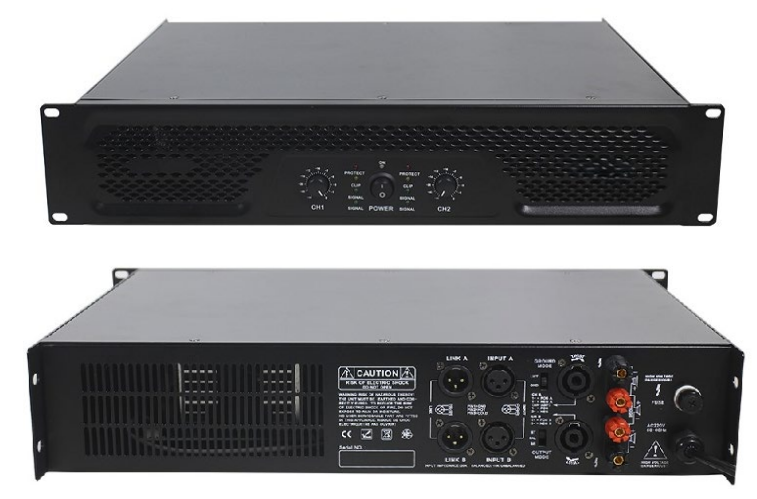

BYFORD AUDIO PA-500 STEREO POWER AMPLIFIER
Model: PA-500
Brand: Byford Audio
Description: Byford Audio’s PA-500 professional Power Amplifier Is A Crucial Component In Audio Systems Where Robust Amplification Is Needed Without Breaking The Bank. It's Designed To Deliver Clean, Reliable Power To Speakers, Making It Ideal For Various Applications From Live Sound Reinforcement To Fixed Installations.

Features:

1) 2U Standard
2) Large Energy Power Supply, High-efficiency And Super Ring Transformer
3) Input Signal Set 0.775V, 1V And 14V Selection Switch
4) With Protection, Signal, Clip, Bridge And Power LED
5) Left And Right Channel With Dual Polar Cooling Fan, High- Efficiency Air Cooling Channel
6) With A Power Start Soft, DC Protection, Short Protection, Thermal Protection & Overload Protection

Specifications:

4Ω Load: 800Wx2, 8Ω Load: 500Wx2, 8Ω Bridge Load: 1000W, Frequency Response: 20Hz-20KHz+-1db,
SNR:>100dB, Input Impedance: 20kΩ, Input Voltage:0.775V,1,1.4V, Input Connect: XLR, Switch Mode: Stereo/Bridge/Parallel, Power Supply: 220V/240V AC50-60Hz, Size(LxDxW)mm: 480x350x88, Weight: 14.8Kg

DATASHEET: PA-500 STEREO POWER AMPLIFIER

Product Quantity: 1

Category Name: Pro-Audio System
